Good Software Engineering Practice for R Packages

Audrey Yeo, MSc Biostatistics




Acknowledgements to Daniel Sabanés Bové, all contributors to Zürich GSWE4R course

Introduction

  1. Opinions do not reflect employer

  2. This presentation has ALT text and as much as possible, uses colour-blind friendly palettes

  3. Code for this Quarto-rendered .html will also be shared

Acknowledgements and further events

About me

Audrey Yeo, MSc Biostats

Research Statistician and Software Engineer

Objective for the next 15 minutes

The low hanging fruits of :

  • Attitudes and Motivation for GSWEP4R

  • R package structure

  • Workflow : From Ideation, Design to Production

  • Clean Code rules

  • Tests and Checks

  • Version control && Collaboration

Attitude & Motivation

  • always learning
  • open to diverse approaches
  • striving for better approaches to build R packages that are
    • reliable
    • reusable
    • easy to maintain

On GSWEP4R

What:

  • improve quality and longevity of R code/packages

  • collection of best practices

  • Do not invent the wheel: learn from community

Why:

R is one of the most successful statistical programming languages

  • powerful yet complex ecosystem

  • R packages are core

  • concepts applicable to other languages

Package Structure

usethis::create_package()

  • Mandatory:
    • DESCRIPTION
    • NAMESPACE
    • R
    • man
  • Typically also includes:
    • data
    • inst
    • src
    • tests
    • vignettes
    • NEWS

R Package Engineering Workflow

Typical work steps in practice

  1. Idea
  2. R package programming
  3. Use in production
  4. Bug fixing
  5. Use in production
  1. Bug fixing + Documentation
  2. Use in production
  3. Bug fixing + Further development
  4. Use in production
  5. Bug fixing + …

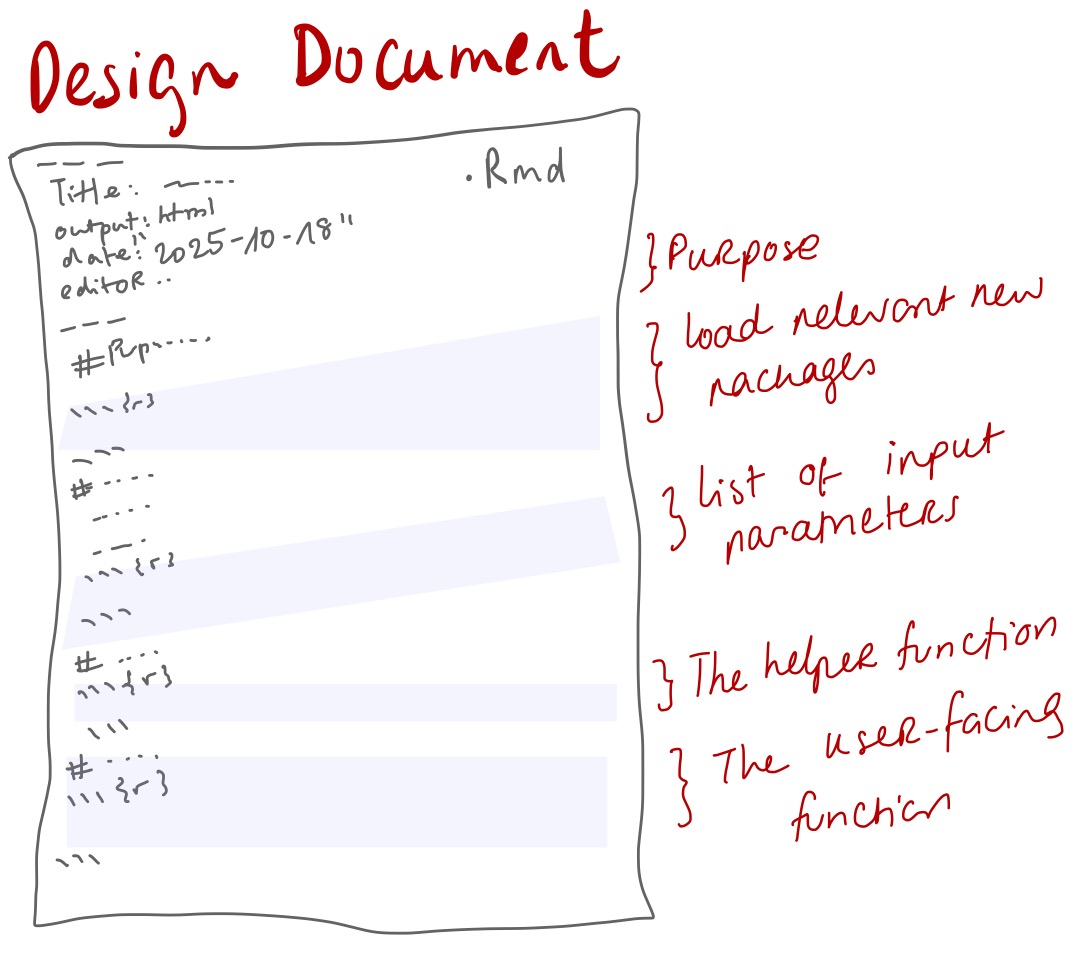

Idea : Design Doc

Any user-facing function that require breakdown, starts with Design-document

  1. Helps achieve Clarity on the form and purpose of the user-facing function

  2. Test regular and edge cases

  3. Makes the rest of the work “easier” when the goals are clear

  4. Most of the “skeleton” and “flesh” of the work can already be done in the because of 1-3

Source R code and roxygen2 documentation

roxygen2 Output

% Generated by roxygen2: do not edit by hand
% Please edit documentation in R/plotOc.R
\name{plotOc}
\alias{plotOc}
\title{Display the operating characteristics results using an \code{oc} object}
\usage{
plotOc(decision, sample_size, all_looks, wiggle_status)
}
\arguments{
\item{decision}{(\code{numeric}):\cr Go, Stop or Gray Zone decisions of all looks simulated \code{length(sim)} times.}

\item{all_looks}{(\code{numeric}):\cr original looks before adjustment by \code{wiggle = TRUE}, if applied.}

\item{wiggle_status}{(\code{flag}):\cr from \code{wiggle} flag in object.}
}
\value{
ggplot object
}
\description{
Plots results from simulated results of :
\itemize{
\item \verb{[ocPostprob()]}
\item \verb{[ocPostprobDist()]}
\item \verb{[ocPostpred()]}
\item \verb{[ocPostpredDist()]}
\item \verb{[ocRctPostprobDist()]}
\item \verb{[ocRctPredprobDist()]}
}

roxygen2 Output (cont’d)

NAMESPACE:

# Generated by roxygen2: do not edit by hand

export(plotOc)

Summary of Clean Code Rules

  1. Naming: Use descriptive and meaningful names for variables, functions, and classes
  2. Formatting: Adhere to consistent indentation, spacing, and bracketing to make the code easy to read
  3. Simplicity: Keep the code as simple and straightforward as possible, avoiding unnecessary complexity
  4. Single Responsibility Principle (SRP): Each function should have a single, well-defined purpose
  5. Don’t Repeat Yourself (DRY): Avoid duplication of code, either by reusing existing code or creating functions

Summary of Clean Code Rules

  1. Comments: Use comments to explain the purpose of code blocks and to clarify complex logic
  2. Error Handling: Include error handling code to gracefully handle exceptions and unexpected situations
  3. Test-Driven Development (TDD): Write tests for your code to ensure it behaves as expected and to catch bugs early
  4. Refactoring: Regularly refactor your code to keep it clean, readable, and maintainable
  5. Code Review: Have other team members review your code to catch potential issues and improve its quality

tests Folder

  • Where store the unit tests covering the functionality of the package
  • Get started with usethis::use_testthat() and usethis::use_test() and populate tests/testthat folder with unit tests
  • Rarely, tests cannot be run within testthat framework, then these can go into R scripts directly in tests directory
  • Can test for numerical “equality” (tolerance considered), or graphical snaps.

Testing Example with expect_equal()

test-ocPredprob

# oc_Predprob ----
test_that("the sum of Eff, Fut, Gray zone probability is 1", {
  set.seed(1989)
  expect_warning(results <- ocPredprob(
    nnE = c(10, 20),
    truep = 0.4,
    p0 = 0.25,
    tT = 0.6,
    phiL = 0.2,
    phiU = 0.8,
    parE = c(1, 1),
    sim = 50,
    wiggle = FALSE,
    decision1 = TRUE
  ), "Advise to use sim >= 50000 to achieve convergence")
  results <- sum(results$oc[5:7])
  expect_equal(results, 1)
})

Testing Example with snaps

test-plotOc

test_that("plotOc gives expected results for `ocPredprobDist` with different relativeDelta status", {
  set.seed(2025)
  expect_warning(res7 <- ocPredprobDist(
    nnE = c(10, 20, 30),
    truep = 0.40,
    deltaE = 0.10,
    deltaF = 0.10,
    relativeDelta = FALSE,
    tT = 0.6,
    phiU = 0.80,
    phiL = 0.20,
    parE = c(1, 1),
    parS = c(5, 25),
    weights = 1,
    weightsS = 1,
    sim = 50,
    wiggle = TRUE,
    decision1 = TRUE
  ))
  expect_warning(res8 <- ocPredprobDist(
    nnE = c(10, 20, 30),
    truep = 0.40,
    deltaE = 0.5,
    deltaF = 0.5,
    relativeDelta = TRUE,
    tT = 0.6,
    phiU = 0.80,
    phiFu = 0.7,
    parE = c(1, 1),
    parS = c(5, 25),
    weights = 1,
    weightsS = 1,
    sim = 50,
    nnF = c(10, 20, 30),
    wiggle = TRUE,
    decision1 = TRUE
  ))
  result1 <- plotOc(
    decision = res7$Decision,
    sample_size = res7$SampleSize,
    all_looks = res7$Looks,
    wiggle_status = res7$params$wiggle
  )
  result2 <- plotOc(
    decision = res8$Decision,
    sample_size = res8$SampleSize,
    all_looks = res8$Looks,
    wiggle_status = res8$params$wiggle
  )
  vdiffr::expect_doppelganger(
    title = "Plot of simulation result without relativeDelta for posterior predictive probability",
    fig = result1
  )
  vdiffr::expect_doppelganger(
    title = "Plot of simulation result with relativeDelta for posterior predictive probability",
    fig = result2
  )
})

Some available tests

Function name Does code…
expect_condition fulfill a condition?
expect_equal return the expected value?
expect_error throw an error?
expect_false return ‘FALSE’?
expect_gt return a number greater than the expected value?
expect_gte return a number greater or equal than the expected value?
expect_identical return the expected value?
expect_invisible return a invisible object?
expect_length return a vector with the specified length?
expect_lt return a number less than the expected value?
expect_lte return a number less or equal than the expected value?

More available tests

Function name Does code…
expect_no_condition run without condition?
expect_no_error run without error?
expect_no_message run without message?
expect_no_warning run without warning?
expect_silent execute silently?
expect_true return ‘TRUE’?
expect_type return an object inheriting from the expected base type?
expect_vector return a vector with the expected size and/or prototype?
expect_visible return a visible object?
expect_warning throw warning?

Checking the Package

  • R comes with pre-defined check command for packages: “the R package checker” aka R CMD check
  • About 22 checks are run (so quite a lot), including things like:
    • Can the package be installed?
    • Is the code syntax ok?
    • Is the documentation complete?
    • Do tests run successfully?
    • Do examples run successfully?
  • In RStudio: Build > Check
  • In the console: devtools::check()

Building the Package

  • The R package folder can be compressed into a single package file
  • Typically we manually only build “source” package
    • In RStudio: Build > More > Build Source Package
    • In the console: devtools::build()
  • Makes it easy to share the package with others and submit to CRAN

Version Control and Collaboration

A typical GitHub workflow

Version Controlling

  • many products available such as GitHub and GitLab
  • works with working alone or in a team
  • allows managing versions and work of many collaborators
  • simplifies the many changes people working togehter does
  • BASH code skills required

GitHub

  • tidyverse, ggplot2, pharmaverse are on GitHub
  • allows automation of checks
  • extremely useful to enforce best-practices & quality

Personal remarks.

Creating the conditions for success, is also good practice

  • Good Practice will evolve
  • Safe space to be ask any questions, and iterate, even for a seasoned engineer is effective and efficient
  • Positive bias & Trust are win-win situations
  • Confidence through competence in learning good practices
  • Learning through mistakes is key

Thank you

Audrey Yeo
BSci MSc Biostats RN

Research Statistician and Software Engineer

References

More references

  • O’Reilly and Associates. [Book | Online]

  • Rupp, C., & SOPHISTen, die. (2009). Requirements-Engineering und -Management: Professionelle, iterative Anforderungsanalyse für die Praxis (5. Ed.). Carl Hanser Verlag GmbH & Co. KG. [Book]

  • Wickham, H. (2015). R Packages: Organize, Test, Document, and Share Your Code (1. Aufl.). O’Reilly and Associates. [Book | Online]

  • Wickham, H. (2019). Advanced R, Second Edition.
    Taylor & Francis Ltd. [Book | Online]

  • Code for this talk

  • Inclusive Speaker Orientation Linux Foundation

  • Zeileis, Fisher, Hornik, Ihaka, McWhite, Murrell, Stauffer, Wilke (2020) colorspace: A Toolbox for Manipulating and Assessing Colors and Palettes. Journal of Statistical Software.
